Query about layout 18/03/2017 at 16:54 #93726
MarkC
Avatar
947 posts
Online
I have been running this sim, and have noticed near the on duty discriber there is a orange box with "Int" in either white or greyed out. can anyone tell me what they are or what they are for please

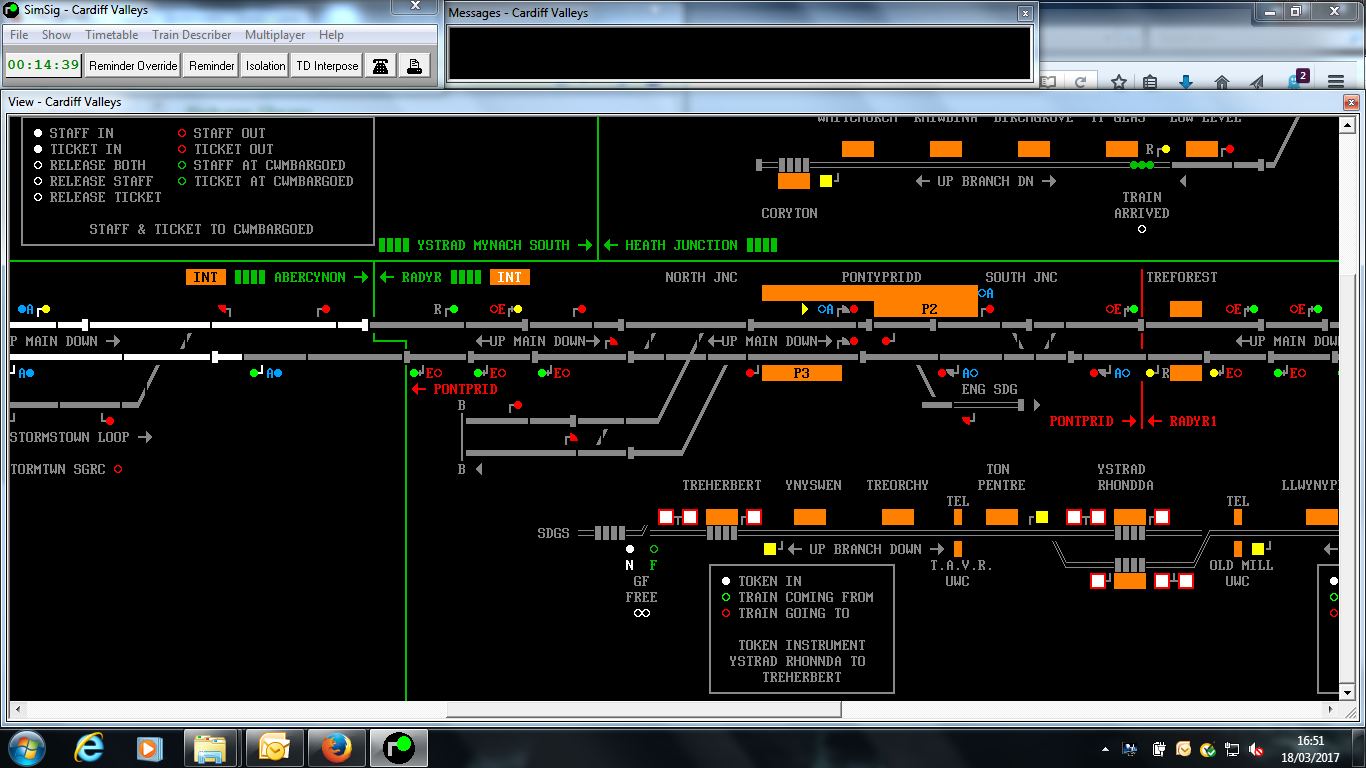

if the Int is in white there is red text and lines on the panel (picture int-on.png)

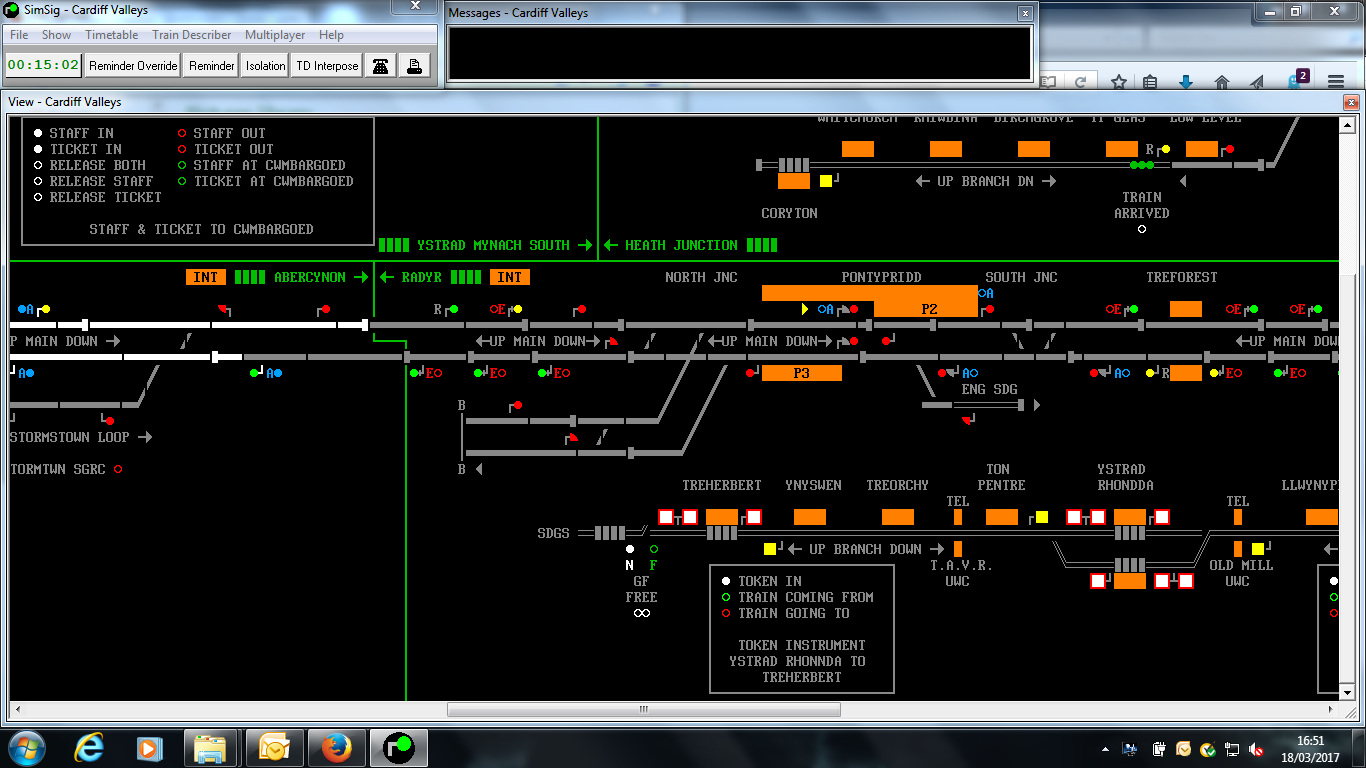

and if it is greyed out (int-off.png) the red lines are not there, have looked at the valleys section of wiki, but have not found anything and have not seen it before
right or left clicking the mouse on it changes its state.



Post has attachments. Log in to view them.
2020. The year your bin goes out more than you do
Last edited: 18/03/2017 at 17:08 by MarkC
Reason: Spelling

Log in to reply
Query about layout 18/03/2017 at 17:04 #93727
Steamer
Avatar
3264 posts
Online
It displays the Interlocking boundaries. Radyr box, for instance, has two- Radyr and Pontrypridd. In terms of running the simulation, it doesn't matter whether they're on or off, although when you get a failure message it might help narrow down the area the failure is in.
"Don't stress/ relax/ let life roll off your backs./ Except for death and paying taxes/ everything in life.../ is only for now." (Avenue Q)
Last edited: 18/03/2017 at 17:05 by Steamer
Reason: .

Log in to reply
The following user said thank you: MarkC
Query about layout 18/03/2017 at 17:07 #93728
MarkC
Avatar
947 posts
Online
Steamer in post 93727 said:
It displays the Interlocking boundaries. Radyr box, for instance, has two- Radyr and Pontrypridd. In terms of running the simulation, it doesn't matter whether they're on or off, although when you get a failure message it might help narrow down the area the failure is in.
Many thanks Steamer

2020. The year your bin goes out more than you do
Log in to reply
Query about layout 18/03/2017 at 17:09 #93729
Peter Bennet
Avatar
4772 posts
At a guess, it's the interlocking areas.

Peter

I identify as half man half biscuit - crumbs!
Log in to reply
Query about layout 19/03/2017 at 10:42 #93792
headshot119
Avatar
3717 posts
Online
Steamer in post 93727 said:
It displays the Interlocking boundaries. Radyr box, for instance, has two- Radyr and Pontrypridd. In terms of running the simulation, it doesn't matter whether they're on or off, although when you get a failure message it might help narrow down the area the failure is in.
Steamer covers the subject quite nicely, I've added a new section to each of the manuals.

"As the last track dropped, and the route became free, came the cry BROMLEY " - Opinions are my own and not those of my employer
