Stafford Colwich Jn Area

You are here: Home > Forum > Simulations > Released > Stafford > Stafford Colwich Jn Area

Page 1 of 1

Stafford Colwich Jn Area 06/07/2015 at 15:21 #73954
HST125Scorton
Avatar
559 posts
Online

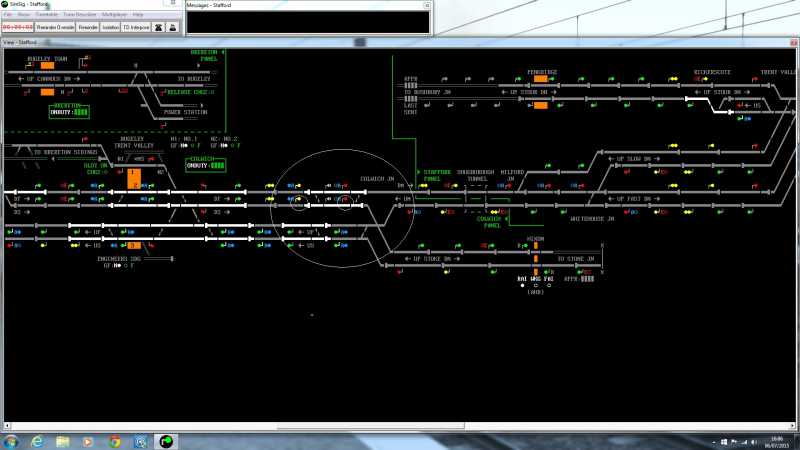

I don't know if this has been touched on before but last week while I was on the train Brummy to Preston we were on the Fast Line until Colwich Jn as noraml before going towards Stafford via FL. I noticed that with the route been set by the signaller that signals CH104, CH29 were flashing amber (yellow) and CH23 was a steady amber clearing to Green after the AWS with route flower? showing to the left. I've highlighted it on the Sim as it seems it don't do that instead if going towards stafford the train approaches a red before clearing to a green unless . Is it possible for it to be programmed in?


Post has attachments. Log in to view them.
Aaron (AJRO)
Log in to reply
Stafford Colwich Jn Area 06/07/2015 at 15:35 #73955
JamesN
Avatar
1091 posts
Stafford represents the old layout pre-WCML modernisation, signalling around colwich has changed quite a bit...
Log in to reply
The following user said thank you: HST125Scorton
Stafford Colwich Jn Area 06/07/2015 at 16:01 #73956
GeoffM
Avatar
4503 posts
Online
Colwich was pretty much just a re-control, not a re-signal.

Will check with the developer of the sim as to which routes should have flashing yellows.

SimSig Boss
Log in to reply
The following user said thank you: HST125Scorton
Stafford Colwich Jn Area 06/07/2015 at 16:43 #73962
HST125Scorton
Avatar
559 posts
Online
I do know the area was upgraded with TV4, but I'm 100% positive the them signals were flashing before crossing at Colwich Jn to Stafford.
Colwich was re-controlled the signals were upgraded to LED thats about it.

Aaron (AJRO)
Log in to reply
Stafford Colwich Jn Area 06/07/2015 at 20:49 #73971
Zoe
Avatar
240 posts
Don't forget that what was the Down Fast line in the sim era is now the Down Slow. You may want to read http://forum.signalbox.org/viewtopic.php?f=5&t=2920 which discusses the current situation at Colwich. The last post on the first page of that thread is by principles designer for the arrangements introduced in 2009. I am not quite sure why a Birmingham to Preston train would be passing Colwich Junction at all though, I can't think of any that are booked that way.
Last edited: 06/07/2015 at 23:52 by Zoe
Log in to reply
Stafford Colwich Jn Area 07/07/2015 at 19:41 #74003
GeoffM
Avatar
4503 posts
Online
Still nailing down what aspect sequence a driver would have seen for CH23 towards Stafford, but we do know for sure it wasn't a flashing yellow route, per driver route guides for the era in which the SimSig simulation is set.
SimSig Boss
Log in to reply
Stafford Colwich Jn Area 07/07/2015 at 20:28 #74006
HST125Scorton
Avatar
559 posts
Online
Geoff I'm sorry I've been looking at today's point of view :dry: I do believe that it was non flashing in the era shown in the simulation, according to a VT Driver from Preston (no name given) the signals are of area RN and controlled via Rugby apparently and that they flash as mentioned below.
Aaron (AJRO)
Log in to reply
Stafford Colwich Jn Area 07/07/2015 at 20:40 #74007
Steamer
Avatar
2977 posts
Online
" said:
Geoff I'm sorry I've been looking at today's point of view :dry: I do believe that it was non flashing in the era shown in the simulation, according to a VT Driver from Preston (no name given) the signals are of area RN and controlled via Rugby apparently and that they flash as mentioned below.
I thought Rugby only controlled to the site of Armitage Jn, with Colwich controlled by Stoke-on-Trent?

"Don't stress/ relax/ let life roll off your backs./ Except for death and paying taxes/ everything in life.../ is only for now." (Avenue Q)
Last edited: 07/07/2015 at 20:41 by Steamer
Log in to reply
Stafford Colwich Jn Area 07/07/2015 at 20:43 #74008
HST125Scorton
Avatar
559 posts
Online
That's what I'm thinking as I though it was Stoke PSB but the signals are RN**** at Colwich which only means Rugby Controlled.
Aaron (AJRO)
Log in to reply
Stafford Colwich Jn Area 07/07/2015 at 20:59 #74010
GeoffM
Avatar
4503 posts
Online
Colwich is controlled from Stoke-on-Trent (MCS workstation) and the signals are prefixed CH.

RN is used for the section Rugby to Nuneaton and in this case is controlled by Rugby, but the signal prefixes on the West Coast (and other places) do not necessarily indicate the controlling signal box, only a line segment. South of Colwich the signals are prefixed LS which means Lichfield to Stafford. North of Colwich you have SOT for Stoke and SD4 for Stafford No.4.

A video from last year showing signals at Rugeley (same workstation as Colwich):
[video width=425 height=344 type=youtube]XEa94FWq-oo[/video]

SimSig Boss
Last edited: 07/07/2015 at 21:01 by GeoffM
Log in to reply
The following users said thank you: HST125Scorton, Steamer
Stafford Colwich Jn Area 07/07/2015 at 21:28 #74011
HST125Scorton
Avatar
559 posts
Online
Ah I see what you mean now Geoff. Stafford is moving to West Midlands SCC by August this year. Unknow why them sigs were flashing.
Aaron (AJRO)
Log in to reply
