Control tables question 07/03/2018 at 22:09 #106541
clive
Avatar
2736 posts
I've acquired some old control tables from the Eastern Region. There are some things in them that don't make sense to me, so I'm wondering if anyone here can help.

The routes tables have footnotes:
R/A - Route Away
O/C - Once Signal Cleared

One route has, in the "signal controls, track circuits clear" column, among other entries that make sense:
(1234 or 2345R or R/A) (1111 or OCC)
Track circuit 1111 is the first one in the route, but it makes no sense to me to say that the track circuit must be occupied or clear; why not just leave it out of the table? Track circuit 1234 makes sense as a flank protection when 2345 points are normal, but what is the "Route Away" bit about? That one's just an example; there are other similar ones.

Can anyone help?

Log in to reply
Control tables question 07/03/2018 at 22:19 #106542
Sacro
Avatar
1171 posts
Initial track occupied or clear usually suggests last wheel replacement.
Log in to reply
Control tables question 10/03/2018 at 07:25 #106578
TomOF
Avatar
452 posts
Agreed.

The signal won’t clear if the first track beyond the signal is occupied but a stick path in the relay circuitry will be energised when the signal steps up from red allowing the signal to remain off. The only note of caution is to check whether this applies to all tracks in line of route or just the first. Westbury station platform starter signals appear to have third track replacement rather than last wheel.

The route away bit refers to a check in the aspect level for other nearby tracks clear that could suggest an overrun has taken place and revert the signal to danger. An exemption to this rule is a check for the USR down in a direction that would positively take a train away from our route, not towards it hence the route away part. I’ve implemented this at Carlisle in a couple of places.

Log in to reply
Control tables question 10/03/2018 at 10:24 #106583
clive
Avatar
2736 posts
TomOF in post 106578 said:


The signal won’t clear if the first track beyond the signal is occupied but a stick path in the relay circuitry will be energised when the signal steps up from red allowing the signal to remain off. The only note of caution is to check whether this applies to all tracks in line of route or just the first. Westbury station platform starter signals appear to have third track replacement rather than last wheel.
In this case 1111 is in the "disengage" column as well. So, while I see what you're saying, I'm not clear if that still applies. The "OR OCC" stuff is only on the first track circuit, and second track circuit replace does make a bit of sense to me.

TomOF in post 106578 said:

The route away bit refers to a check in the aspect level for other nearby tracks clear that could suggest an overrun has taken place and revert the signal to danger. An exemption to this rule is a check for the USR down in a direction that would positively take a train away from our route, not towards it hence the route away part. I’ve implemented this at Carlisle in a couple of places.
Okay, that makes a lot of sense given the data. Thanks.

Log in to reply
Control tables question 10/03/2018 at 11:20 #106588
TomOF
Avatar
452 posts
clive in post 106583 said:
[quote=TomOF;post=106578]
In this case 1111 is in the "disengage" column as well. So, while I see what you're saying, I'm not clear if that still applies. The "OR OCC" stuff is only on the first track circuit, and second track circuit replace does make a bit of sense to me.
If I recall correctly is effectively a check for track occupied after the signal clears.
This prevents the signal re-clearing unless restroked with the disengaging track clear (or auto button selected).

Log in to reply
Control tables question 10/03/2018 at 17:25 #106608
GeoffM
Avatar
6274 posts
2nd track replacement was a common fudge when TPWS was introduced, to prevent the toast rack arming with the signal now back at red before the sensor on the train passed the rack.
SimSig Boss
Log in to reply
Control tables question 12/03/2018 at 20:47 #106697
Firefly
Avatar
521 posts
Quote:
In this case 1111 is in the "disengage" column as well. So, while I see what you're saying, I'm not clear if that still applies. The "OR OCC" stuff is only on the first track circuit, and second track circuit replace does make a bit of sense to me.
1111 being in the disengaging column is not really relevant to the track circuits in aspect conditions. The number of tracks that have OR OCC (called $40 controls on modern control tables) will usually depend on the reason for applying last wheel replacement. If it's just for TPWS as Geoff has mentioned then you would only need the first track past the signal, if however it's to allow a propelling move to take place then you would include all track circuits to accommodate the longest train. On the scheme that I'm presently testing they've made an allowance for 700m trains (for some bizarre reason), therefore signals that have last wheel replacement have $40 controls on all track circuits that fall 700m beyond the signal.

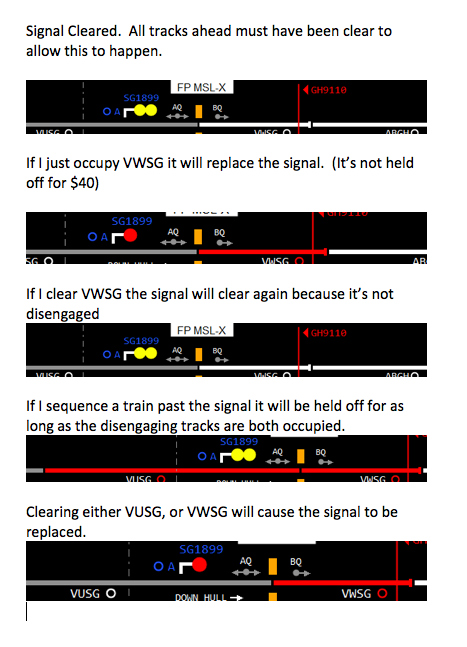

You can't just ignore those track circuits because if you had a light engine sat 600m down the line you mustn't allow the signal to clear. However, once you've proved that all of your track circuits beyond the signal are clear and you have a proceed aspect, then those tracks can be either occupied or clear. In reality there are a few more conditions. I may have managed to attach some images to help explain.

FF

Post has attachments. Log in to view them.
Last edited: 12/03/2018 at 22:04 by Firefly
Reason: None given

Log in to reply
Control tables question 13/03/2018 at 00:53 #106719
BarryM
Avatar
2158 posts
Is it not bizarre when you have some Australian train over 1000m long?

Barry

Barry, Sydney, New South Wales, Australia
Last edited: 13/03/2018 at 00:55 by BarryM
Reason: .

Log in to reply
Control tables question 13/03/2018 at 09:16 #106725
Firefly
Avatar
521 posts
Yes, but not on some back water line in the U.K.
Log in to reply
Control tables question 13/03/2018 at 09:25 #106726
postal
Avatar
5189 posts
BarryM in post 106719 said:
Is it not bizarre when you have some Australian train over 1000m long?

Barry
What is bizarre is boasting about trains over 1000m long when that is kiddy-car railway compared to some.

Have a look at this page from July 2017 extracted at random from t'internet. It includes:

"CSX, the No.3 U.S. railroad by revenue, told investors in October its freight trains have increased more than 400 feet to 6,833 feet (2.08 km) on average since March, when newly appointed Chief Executive Officer Hunter Harrison launched his plan to boost profits and streamline operations."

So if 2080m. is the average, heaven knows what their longest consist runs to.

“In life, there is always someone out there, who won’t like you, for whatever reason, don’t let the insecurities in their lives affect yours.” – Rashida Rowe
Log in to reply
Control tables question 21/11/2018 at 04:12 #113460
AlexRail575
Avatar
136 posts
Completely late to the discussion.

So here in Canada we must be pretty average. There was a freight train which I noticed (i.e. was stopped at the level crossing) while it passed today - 3 locos + 68 cars long - which, assuming a standard 20 m/car, ends up at just over 1.4 km.

Log in to reply
Control tables question 21/11/2018 at 05:26 #113461
GeoffM
Avatar
6274 posts
AlexRail575 in post 113460 said:
Completely late to the discussion.

So here in Canada we must be pretty average. There was a freight train which I noticed (i.e. was stopped at the level crossing) while it passed today - 3 locos + 68 cars long - which, assuming a standard 20 m/car, ends up at just over 1.4 km.
This American train is somewhat shorter than usual:
https://www.youtube.com/watch?v=Qryq3nYa0o8

SimSig Boss
Log in to reply
Control tables question 21/11/2018 at 14:07 #113463
AlexRail575
Avatar
136 posts
Environmentally friendly, too (zero CO2) - really, gravity should be used more often...

Americans, in this instance, are really miles ahead...

Log in to reply
