Signal 104 "no overlap available"

You are here: Home > Forum > Simulations > Released > Westbury > Signal 104 "no overlap available"

Page 1 of 1

Signal 104 "no overlap available" 25/04/2021 at 13:56 #139031
Albert
Avatar
1313 posts
In the attached save, I attempted to set the route out for 6U03 in platform 1 towards Fairwood Jn but got 'no overlap available'. This is a rather odd message in this case as there is no need to set any points in the overlap of signal 104 (the red signal which 7V16 just passed).

I can set the route if I wait until the overlap is clear. It just surprised me that it wouldn't set any earlier.

FWIW, 7V16 came out of Down Yard 7-12.

Post has attachments. Log in to view them.
AJP in games
Log in to reply
Signal 104 "no overlap available" 25/04/2021 at 19:50 #139059
Peter Bennet
Avatar
5354 posts
Interesting, the O/L is coded as both a shunt and a main overlap and it appears till one is cleared the other can't be used even though they are identical in all other respects.

Peter

I identify as half man half biscuit - crumbs!
Log in to reply
Signal 104 "no overlap available" 25/04/2021 at 23:06 #139068
GeoffM
Avatar
6274 posts
Peter Bennet in post 139059 said:
Interesting, the O/L is coded as both a shunt and a main overlap and it appears till one is cleared the other can't be used even though they are identical in all other respects.
There is a Mantis ticket somewhere for oversetting a shunt onto a main or vice versa. It seems to be quite rare in the UK but quite common in Australia.

SimSig Boss
Log in to reply
Signal 104 "no overlap available" 26/04/2021 at 06:08 #139073
Peter Bennet
Avatar
5354 posts
Thanks, I'll need to remind myself where the shunt overlap came from.

Peter

I identify as half man half biscuit - crumbs!
Log in to reply
Signal 104 "no overlap available" 26/04/2021 at 06:49 #139074
Peter Bennet
Avatar
5354 posts
I've not got the control tables for Westbury but seems it has been the case (with the Sim) since at least May 2011.

Peter

I identify as half man half biscuit - crumbs!
Last edited: 26/04/2021 at 09:20 by Peter Bennet
Reason: None given

Log in to reply
Signal 104 "no overlap available" 26/04/2021 at 11:59 #139082
flabberdacks
Avatar
574 posts
GeoffM in post 139068 said:
Peter Bennet in post 139059 said:
Interesting, the O/L is coded as both a shunt and a main overlap and it appears till one is cleared the other can't be used even though they are identical in all other respects.
There is a Mantis ticket somewhere for oversetting a shunt onto a main or vice versa. It seems to be quite rare in the UK but quite common in Australia.
31615

Log in to reply
Signal 104 "no overlap available" 13/07/2021 at 12:41 #140548
Dionysusnu
Avatar
575 posts
Online
This also happens with the call-on route at Saltley S194 to S200, because the call-on route includes an overlap, for some reason.
Last edited: 13/07/2021 at 15:46 by Dionysusnu
Reason: None given

Log in to reply
Signal 104 "no overlap available" 13/07/2021 at 15:27 #140549
Albert
Avatar
1313 posts
I can't find 194 nor 200 on the signal number plan of Saltley, would you mind indicating whereabouts these signals are?
AJP in games
Log in to reply
Signal 104 "no overlap available" 13/07/2021 at 15:46 #140550
Dionysusnu
Avatar
575 posts
Online
B'ham Moor Street into Snow Hill, platform 2
Last edited: 13/07/2021 at 16:31 by Dionysusnu
Reason: None given

Log in to reply
Signal 104 "no overlap available" 13/07/2021 at 17:02 #140551
Albert
Avatar
1313 posts
You mean that the call-on route cannot be set if the overlap of a previous train into the platform is not clear yet?
AJP in games
Log in to reply
Signal 104 "no overlap available" 13/07/2021 at 17:07 #140552
Dionysusnu
Avatar
575 posts
Online
Precisely. That overlap is quite slow to time out.
Log in to reply
Signal 104 "no overlap available" 13/07/2021 at 18:06 #140555
GeoffM
Avatar
6274 posts
Albert in post 140551 said:
You mean that the call-on route cannot be set if the overlap of a previous train into the platform is not clear yet?
Dionysusnu in post 140552 said:
Precisely. That overlap is quite slow to time out.
Long platform, 15mph, around 60s timeout*. Seems about right to me without seeing the control tables - though I wouldn't be surprised if it's actually too short and should be more like 120s like a lot of others like this.

* Rule of thumb is to take the TC length in metres, divide by the max speed in m/s, and add half on again to get the overlap release time in seconds. However, there are shorter times, and there are longer times. Just depends on a number of variables.

SimSig Boss
Log in to reply
The following user said thank you: Dionysusnu
Signal 104 "no overlap available" 17/08/2021 at 20:10 #141186
Guts
Avatar
584 posts
I don't know if I should start a new thread for this.

Is there any reason S277 from the East Somerset line has an overlap? Is it a passenger line?

Log in to reply
Signal 104 "no overlap available" 17/08/2021 at 20:42 #141188
GeoffM
Avatar
6274 posts
Guts in post 141186 said:
I don't know if I should start a new thread for this.

Is there any reason S277 from the East Somerset line has an overlap? Is it a passenger line?

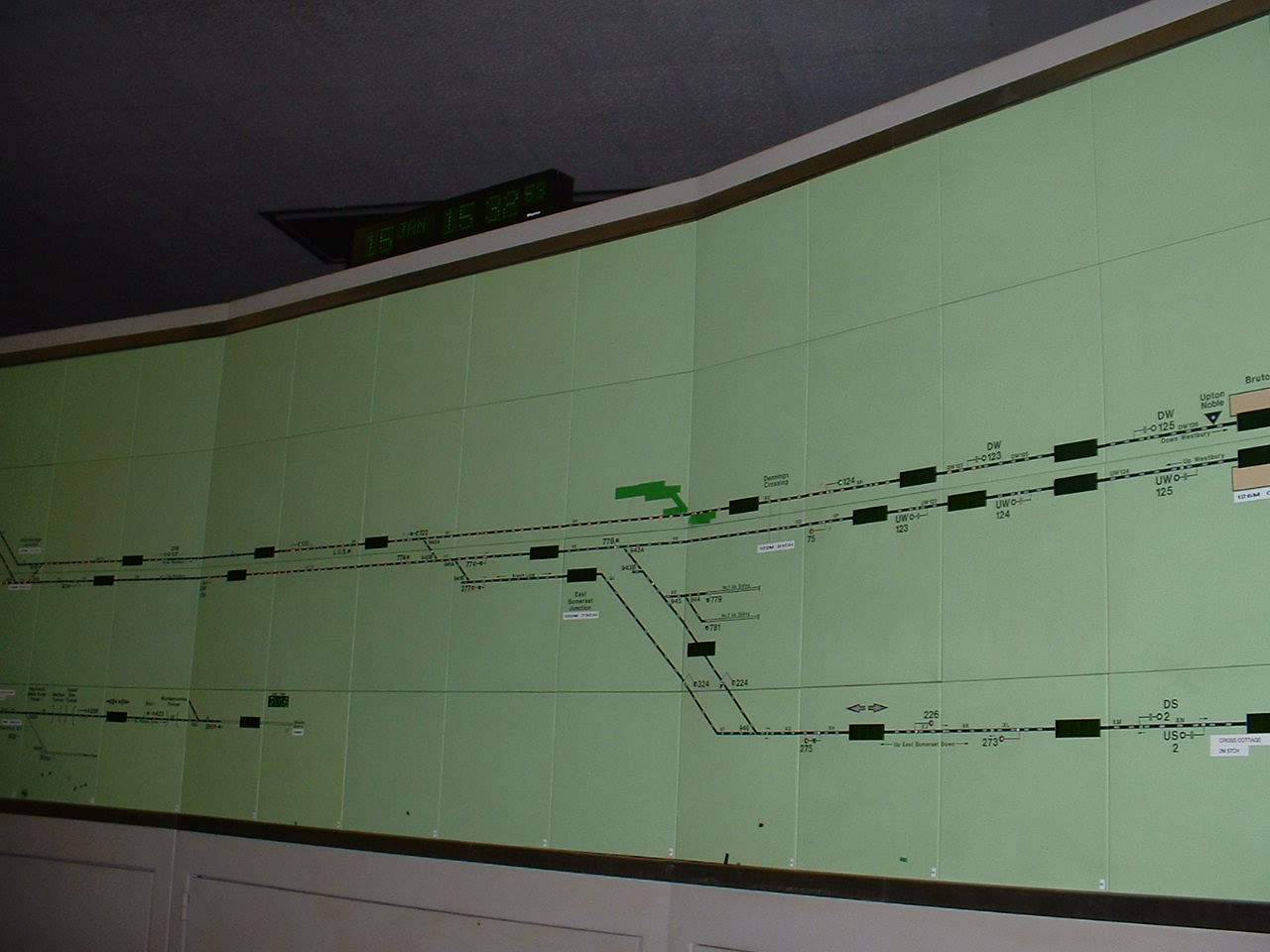

I don't know why nearly the whole has overlaps - perhaps aspirations for passenger service? - but this photo shows them (see the little arrows).


Post has attachments. Log in to view them.
SimSig Boss
Log in to reply
Signal 104 "no overlap available" 18/08/2021 at 07:41 #141196
clive
Avatar
2736 posts
Particularly in the case of DS2/US2, I wonder if it's extra protection for the single-line working.
Log in to reply
Signal 104 "no overlap available" 18/08/2021 at 12:42 #141200
Dionysusnu
Avatar
575 posts
Online
On a slightly related note, why is S275 approach controlled for all routes? They both seem to be straight, or at least no speed reduction.
Log in to reply
Signal 104 "no overlap available" 18/08/2021 at 13:09 #141201
Hap
Avatar
972 posts
Dionysusnu in post 141200 said:
On a slightly related note, why is S275 approach controlled for all routes? They both seem to be straight, or at least no speed reduction.
There is a speed reduction from 30 to 20 on to the U/DGL and 25 for the main route off of the branch, protecting a 100mph mainline.

How to report an issue: www.SimSig.co.uk/Wiki/Show?page=usertrack:reportanissue
Log in to reply
Signal 104 "no overlap available" 18/08/2021 at 16:26 #141204
Stephen Fulcher
Avatar
2007 posts
Also saves a timeout if the Signaller changes his mind and the train hasn’t got there yet
Log in to reply
