Up Decoy Signal No.1

You are here: Home > Forum > Simulations > Released > Doncaster (Station) > Up Decoy Signal No.1

Page 1 of 1

Up Decoy Signal No.1 03/08/2024 at 10:11 #158019
bugsy
Avatar
1750 posts
Online

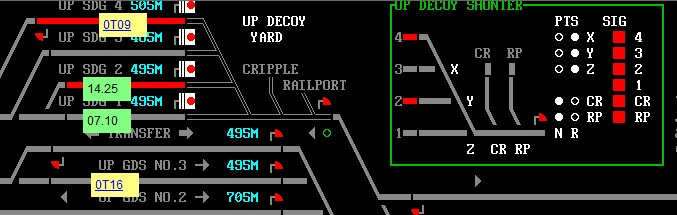

I'm probably the only person who doesn't know the answer to this question. What does Signal No.1 do in the Up Decoy Yard?
.....


Post has attachments. Log in to view them.
Everything that you make will be useful - providing it's made of chocolate.
Log in to reply
Up Decoy Signal No.1 03/08/2024 at 10:54 #158022
jc92
Avatar
3675 posts
its the handsignal past the stop board on up siding 1. 2,3 & 4 all do the equivelant for their roads.
"We don't stop camborne wednesdays"
Log in to reply
The following user said thank you: bugsy
Up Decoy Signal No.1 03/08/2024 at 11:21 #158023
flabberdacks
Avatar
619 posts
It authorises a train to depart either Roads 1/4 past the stop board, or for a train to depart the Cripple Siding, or Railport.

For example when a train enters at Railport you first switch points RP to reverse, then click the RP box, it'll turn green to confirm a proceed authority will be given to the entering train.

The train will then move up to the shunt signal underneath the word RAILPORT on the main diagram and can be signalled as normal into the shunt neck, onto the east slow line or onto the flyover, depending on what it needs to do next.

Always make sure the points are correctly set for every move, before you authorise the move to begin.

Last edited: 03/08/2024 at 11:22 by flabberdacks
Reason: None given

Log in to reply
The following user said thank you: bugsy
Up Decoy Signal No.1 03/08/2024 at 14:07 #158025
bugsy
Avatar
1750 posts
Online
jc92 in post 158022 said:
its the handsignal past the stop board on up siding 1. 2,3 & 4 all do the equivelant for their roads.
I think that I'm getting confused (an age thing in my case)

So, for example. I have a train in UP SDG 3 which needs to go tp Potteric Carr Jn. The points X and Z are set and I presume that signal N0.3 has to be cleared. But do I need to clear signal No.1 to get the train moving and then signal No.3 or have I got this completely wrong?
Up until now, I have instructed the train to pass the stop board and that's about it 😐

Update: No. All that's obviously wrong because I cleared signal No. 3 and the train departed.

Everything that you make will be useful - providing it's made of chocolate.
Last edited: 03/08/2024 at 14:16 by bugsy
Reason: None given

Log in to reply
Up Decoy Signal No.1 03/08/2024 at 14:56 #158028
bugsy
Avatar
1750 posts
Online
Would someone kindly give me an example showing when signal No.1 is used.

Edit: Don't worry about this cos I've just found out.

Bugsy.

Everything that you make will be useful - providing it's made of chocolate.
Last edited: 03/08/2024 at 16:12 by bugsy
Reason: None given

Log in to reply
Up Decoy Signal No.1 03/08/2024 at 16:24 #158029
flabberdacks
Avatar
619 posts
Did you get it working okay?
Log in to reply
Up Decoy Signal No.1 03/08/2024 at 19:45 #158034
bugsy
Avatar
1750 posts
Online
flabberdacks in post 158029 said:
Did you get it working okay?
Yes thanks, all sorted 🙂

Everything that you make will be useful - providing it's made of chocolate.
Log in to reply
Up Decoy Signal No.1 05/08/2024 at 06:51 #158055
vloris
Avatar
37 posts
flabberdacks in post 158023 said:
It authorises a train to depart either Roads 1/4 past the stop board, or for a train to depart the Cripple Siding, or Railport.
No, that's not what signal no.1 is for. And your answer is only more confusing.
Signal no.1 is only for the stop board at road no.1 (same for signal 2 - 4 are for roads 2 - 4).
Also Railport (RP) has it's own signal (RP), and the cripple siding (CR) has its own signal (CR).

tl;dr - Signal 1 acts as a handsignal for the stopboard at road 1, just as signal 2 is for Road 2 etc.

Log in to reply
The following users said thank you: sunocske, KCRCRailway
Up Decoy Signal No.1 05/08/2024 at 10:29 #158057
bugsy
Avatar
1750 posts
Online
vloris in post 158055 said:
flabberdacks in post 158023 said:
It authorises a train to depart either Roads 1/4 past the stop board, or for a train to depart the Cripple Siding, or Railport.
No, that's not what signal no.1 is for. And your answer is only more confusing.
Signal no.1 is only for the stop board at road no.1 (same for signal 2 - 4 are for roads 2 - 4).
Also Railport (RP) has it's own signal (RP), and the cripple siding (CR) has its own signal (CR).

tl;dr - Signal 1 acts as a handsignal for the stopboard at road 1, just as signal 2 is for Road 2 etc.
I did eventually realise this and when you look at the graphic, it's logical.
Thanks for making it crystal clear in your explanation 🙂

Everything that you make will be useful - providing it's made of chocolate.
Log in to reply
