| Signal 946 Refuses to clear? 25/03/2012 at 19:10 #30910 | |
Meyshollop
7 posts |
Hi all, Perhaps im making a newbie mistake here, but i set a clear road into southampton central, the train approaches the signal (946) And gets held at a red aspect, however the signal in front is clear, and the next two blocks are also clear? Is there anything blindingly obvious that i'm missing here? Attached is a screenshot showing my problem, if that is any help. many thanks Meyshollop Post has attachments. Log in to view them. Log in to reply |
| Re: Signal 946 Refuses to clear? 25/03/2012 at 19:14 #30911 | |
|
John
884 posts |
You've set the route from a subsidiary signal ( the triangular signal ). You need to set it from the main aspect signal which 1W20 is standing at.
Log in to reply |
| Re: Signal 946 Refuses to clear? 25/03/2012 at 19:16 #30912 | |
|
officer dibble
390 posts |
This is because you have signalled from 946 which is a ground position signal. Return 946 to danger and then to set the route you should be routing from 760 opposite Southampton M.C.T. to either 750 (up slow) or 752 (up fast) at Millbrook, and this will get 1W20 on the move. Hope this helps. Log in to reply |
| Re: Signal 946 Refuses to clear? 25/03/2012 at 19:16 #30913 | |
|
sloppyjag
480 posts |
The train is actually sitting at Sig. 760 which is at red. Sig. 946 has actually cleared but the train cannot reach it because it is sitting the red signal preceding it.
Planotransitophobic! Log in to reply |
| Re: Signal 946 Refuses to clear? 26/03/2012 at 15:27 #30931 | |
Steamer
3922 posts
|

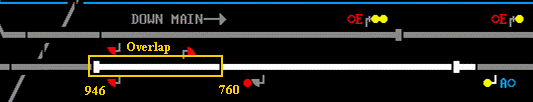

Signal 760, like most main signals, has an overlap. There isn't a route set from 760 to 946, since the signal stem of 760 is grey, not white.To get the train to move, cancel the route from 946 and set a route to either 750 or 752. Signal 946 is only used by trains that are shunting/entering sidings, and will automatically clear when a route is set from 946 to 750 or 752. Post has attachments. Log in to view them. "Don't stress/ relax/ let life roll off your backs./ Except for death and paying taxes/ everything in life.../ is only for now." (Avenue Q) Log in to reply |
| Re: Signal 946 Refuses to clear? 26/03/2012 at 15:39 #30934 | |
|
Meyshollop
7 posts |
Thanks for the help, yep that was the problem, i had set the route from the shunt signal :blush: many thanks Meyshollop Log in to reply |
| Re: Signal 946 Refuses to clear? 26/03/2012 at 18:04 #30941 | |
|
virgin390053
19 posts |
You set a route from 760 to the Next signle that ISNT a Shunt and the shunt signal will automatic clear. Well that how i use to do it and it worked. If you set a route from a shunt you might lose the headcode
Log in to reply |
| Re: Signal 946 Refuses to clear? 12/11/2012 at 18:40 #37455 | |
|
SPADmad
104 posts |
In future if you have that problem make sure the signal post is white - that means there is a route set from it. If it is grey then there isnt. Spadmad Log in to reply |
