Page 2 of 2
| LIVE Signalling on OpenTrainTimes 10/08/2013 at 16:00 #48214 | |
DazrahT
47 posts |
" said:I would not rely too much on the signal colours - even on Network Rails own CCF system they tend to update a lot slower than the train describers step.Indeed, Coventry area signal aspects on CCF are upto 2 minutes behind the TD steps. Log in to reply |
| LIVE Signalling on OpenTrainTimes 13/08/2013 at 01:04 #48271 | |
Edgemaster
332 posts |
Currently got up the London Bridge live map, which is showing a number of berths with TIII or T111 interposed. I'm guessing that this is another 'word' for T3?
Log in to reply |
| LIVE Signalling on OpenTrainTimes 13/08/2013 at 02:01 #48272 | |
GeoffM
6284 posts
|
" said:Looks like a lot of duplicated TDs, so probably something wrong with the feed.I got an email about dropped messages followed by a brief outage that evening. " said: " said:I have heard through the grapevine that the makers of CCF are none too happy with the public TD feeds as their license fees are being eroded by apps such as this - which work on smartphones unlike CCF. Peter Hicks (the person behind OTT) has been instrumental in getting the information out to us, the public. Oh, and the there is no lag unlike the delays that apparently occur on CCF: I've been online/Skyping with people observing in the signalboxes and I'm getting signalling information at the same time that they say "now!"I would not rely too much on the signal colours - even on Network Rails own CCF system they tend to update a lot slower than the train describers step.Indeed, Coventry area signal aspects on CCF are upto 2 minutes behind the TD steps. SimSig Boss Log in to reply The following user said thank you: DazrahT |
| LIVE Signalling on OpenTrainTimes 13/08/2013 at 09:47 #48274 | |
Southernrover
46 posts |
" said:Currently got up the London Bridge live map, which is showing a number of berths with TIII or T111 interposed. I'm guessing that this is another 'word' for T3?Wheres the London Bridge map? Can't seem to see any area that covers LB on the list. R Log in to reply |
| LIVE Signalling on OpenTrainTimes 13/08/2013 at 09:51 #48275 | |
|
John
884 posts |
" said:" said:http://beta.opentraintimes.com/maps/signalling/LB/1Currently got up the London Bridge live map, which is showing a number of berths with TIII or T111 interposed. I'm guessing that this is another 'word' for T3?Wheres the London Bridge map? Log in to reply The following user said thank you: Southernrover |
| LIVE Signalling on OpenTrainTimes 15/08/2013 at 08:59 #48398 | |
|
MrBitsy
121 posts |
Working at West Hampstead PSB I saw several poignant TD messages when Leicester closed and moved to Derby. Examples were '-All DONE' '--AT -THE -END' & 'GOOD BYE-' For T3 I use the syntax T347 for T3 item 47, useful with back to back T3's. TVSC Link 4 signaller - Temple Meads, Bath & Stoke Gifford Log in to reply |
| LIVE Signalling on OpenTrainTimes 25/08/2013 at 13:47 #48832 | |
|
John
884 posts |
" said:Working at West Hampstead PSB I saw several poignant TD messages when Leicester closed and moved to Derby. Examples were '-All DONE' '--AT -THE -END' & 'GOOD BYE-'Ash Vale, Aldershot and Farnham boxes closed this weekend with control passing to a new panel at Woking.
Log in to reply The following users said thank you: Josie, ralphjwchadkirk |
| LIVE Signalling on OpenTrainTimes 25/08/2013 at 21:08 #48836 | |
|
ralphjwchadkirk
275 posts |

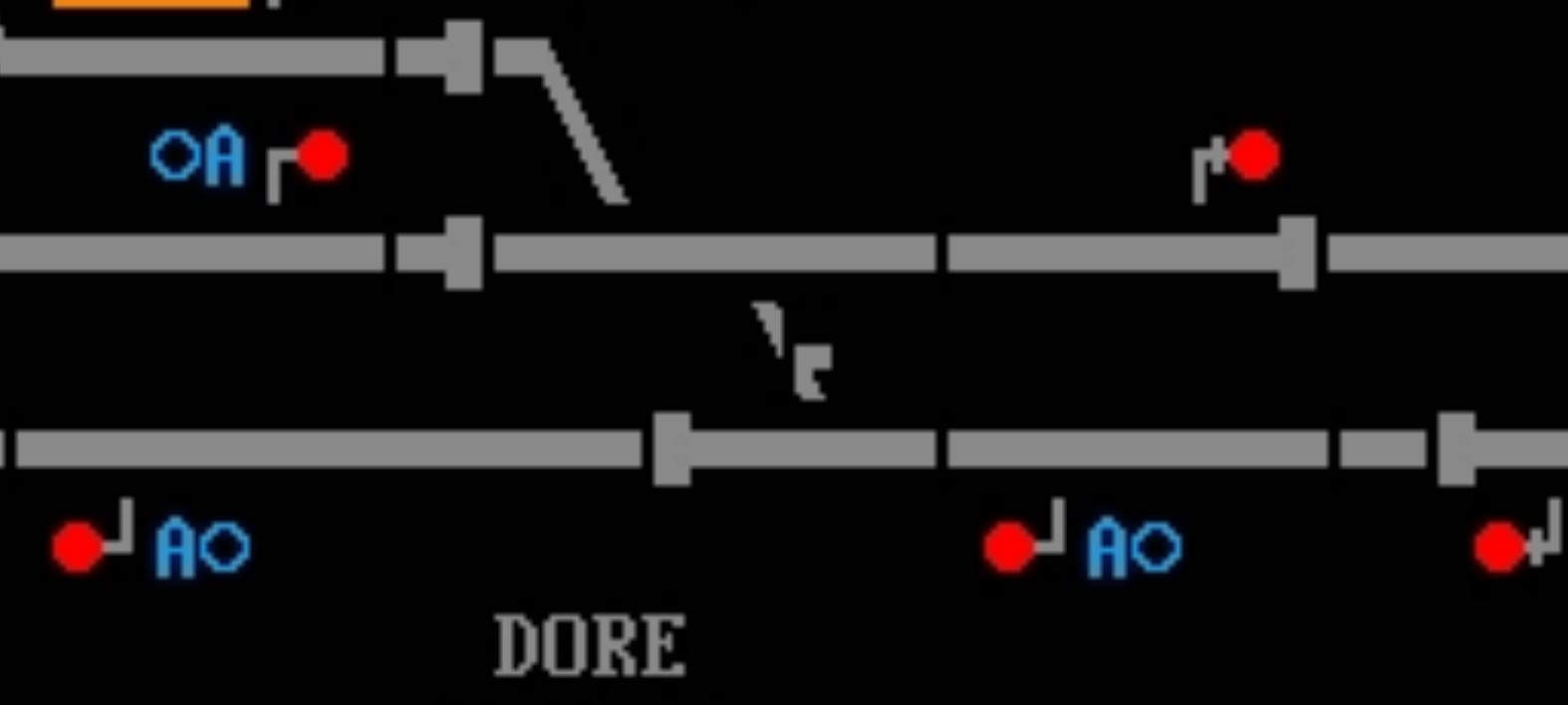

Thanks for that screenshot, John. Farnham is my local box and I'm very sorry to see it go.
Log in to reply |
| Open Train Times 09/09/2013 at 10:14 #49279 | |
|
derbybest
274 posts |
Just a heads up LEEDS has been added to the maps section http://beta.opentraintimes.com/maps/signalling/Y2/1 Log in to reply The following user said thank you: Signalhunter |
| LIVE Signalling on OpenTrainTimes 15/09/2013 at 13:07 #49389 | |
Peter Bennet
5360 posts |
Just noted that Peterborough - Hitchin has been added to the list. Peter I identify as half man half biscuit - crumbs! Log in to reply |
| LIVE Signalling on OpenTrainTimes 17/09/2013 at 16:23 #49432 | |
JohnMiller
321 posts |

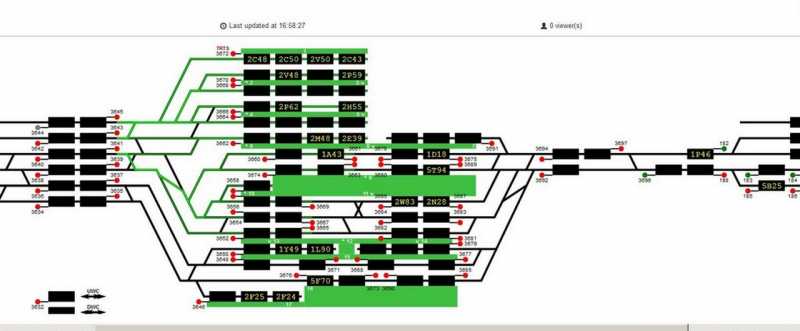

Was watching Leeds Live & they performed an amazing feat of train movement. Just how did 1P46 get from its position on shot one to its position on shot two ??
Post has attachments. Log in to view them. Log in to reply |
| LIVE Signalling on OpenTrainTimes 17/09/2013 at 16:29 #49433 | |
|
JohnMiller
321 posts |
was watching Leeds Live & they performed an amazing feat of train movement. Just how did 1P46 get from its position on shot one to its position on shot two ??
Post has attachments. Log in to view them. Log in to reply |
| LIVE Signalling on OpenTrainTimes 28/10/2013 at 08:46 #50381 | |
|
welwyn
15 posts |
some very interesting sights on these maps this morning...blocked lines....empty ECML, like a ghost town Hope everyone is ok ? Log in to reply |
| LIVE Signalling on OpenTrainTimes 27/12/2013 at 17:51 #53272 | |
|
jsiren
6 posts |
There seems to be a slight bug in the Liverpool Street diagram near Bethnal Green. Signals 100 to 112 are in somewhat interesting locations. Also, try following a Hackney Downs (fast or suburban line) train and see where it goes. Feedback has been sent. Log in to reply |
| LIVE Signalling on OpenTrainTimes 27/12/2013 at 18:02 #53277 | |
|
Underwood
746 posts |
Was I only the one who went on Xmas day/Boxing day to see just how the busy locations looks empty?  I was more looking at where was being worked over Xmas, never seen so many T3's on the MML! The Waterloo map was plagued with *X** as was London Bridge, don't know what the sea of undescribed codes was about Log in to reply |
| LIVE Signalling on OpenTrainTimes 27/12/2013 at 18:08 #53279 | |
|
mfcooper
707 posts |
" said:...don't know what the sea of undescribed codes was aboutEvery time a trolley or machine (that can activate track circuits) moves another TC occupation occurs. If these moves are in the Wrong Direction, the TC has occupied out of sequence and the Non-Described code will appear (*X** in most of the Southern Region). This can also be for numerous other reasons a TC would occupy during engineering works. As a signaller, I find it is not worth cancelling all these until the possession is finished. Once the *X** appears in a TD berth, it can't appear again when the TC clears and re-occupies. Last edited: 27/12/2013 at 18:08 by mfcooper Log in to reply |
| LIVE Signalling on OpenTrainTimes 27/12/2013 at 18:29 #53282 | |
|
Danny252
1461 posts |
" said:" said:It needn't even be that - just passing a signal in the right direction with no route set would do the same - alternatively, if a trolley or machine were dropped on the track, had no TD assigned, and then started moving around....don't know what the sea of undescribed codes was aboutEvery time a trolley or machine (that can activate track circuits) moves another TC occupation occurs. If these moves are in the Wrong Direction... Last edited: 27/12/2013 at 18:32 by Danny252 Log in to reply |
| LIVE Signalling on OpenTrainTimes 28/12/2013 at 02:38 #53314 | |
DriverCurran
683 posts
|
You will also find that earthing straps placed in accordance with work site protection do exactly the same thing. Paul You have to get a red before you can get any other colour Log in to reply |
