| Strange Signals on Carlisle Sim? 26/03/2014 at 17:58 #57840 | |
GW43125
495 posts |
Hi all, just a quick one. I have just discovered Carlisle Sim and am having a great time using it, but I have just one question: Throughout the sim area, there are signals (or boards- I'm not sure) that look like a lowercase r with an uppercase B on the end. I have attached a screenshot of one. The one I attached is at carlisle station itself, but there are many around the area, mainly south of Carlisle. Could anyone help shed a little light on this? Thanks. Post has attachments. Log in to view them. Log in to reply |
| Strange Signals on Carlisle Sim? 26/03/2014 at 18:01 #57842 | |
headshot119
4869 posts |
They represent the locations of banner repeaters. The real panel gets no indication of the aspect the banner is showing.
"Passengers for New Lane, should be seated in the rear coach of the train " - Opinions are my own and not those of my employer Log in to reply The following user said thank you: GW43125 |
| Strange Signals on Carlisle Sim? 26/03/2014 at 18:01 #57843 | |
Steamer
3923 posts |
They're Banner Repeaters. Some simulations have a little animated disc that changes according to the signal ahead of them, others are just shown as a B.
"Don't stress/ relax/ let life roll off your backs./ Except for death and paying taxes/ everything in life.../ is only for now." (Avenue Q) Log in to reply The following user said thank you: GW43125 |
| Strange Signals on Carlisle Sim? **SOLVED** 26/03/2014 at 18:10 #57845 | |
|
GW43125
495 posts |
Thanks, I'm just used to the animated BR (Or none at all in the case of Waterloo!)
Log in to reply |
| Strange Signals on Carlisle Sim? **SOLVED** 26/03/2014 at 18:19 #57846 | |
|
Stephen Fulcher
2026 posts
|
Most panels (in fact I have never seen a real one which does), and early IECCs did not display the aspect of a banner repeater. In fact, I know of at least one IECC where the banners were not even shown on the panel until recently.
Log in to reply |
| Strange Signals on Carlisle Sim? 31/03/2014 at 12:33 #58066 | |
|
simonr
11 posts |
Entirely possible that it's my memory playing tricks but I have a vague recollection from a visit donkey's years ago that Motherwell panel had indicators on it to show the state of the banner repeaters (or at least some of them)
Last edited: 31/03/2014 at 12:34 by simonr Log in to reply |
| Strange Signals on Carlisle Sim? 31/03/2014 at 15:11 #58074 | |
|
Late Turn
696 posts |

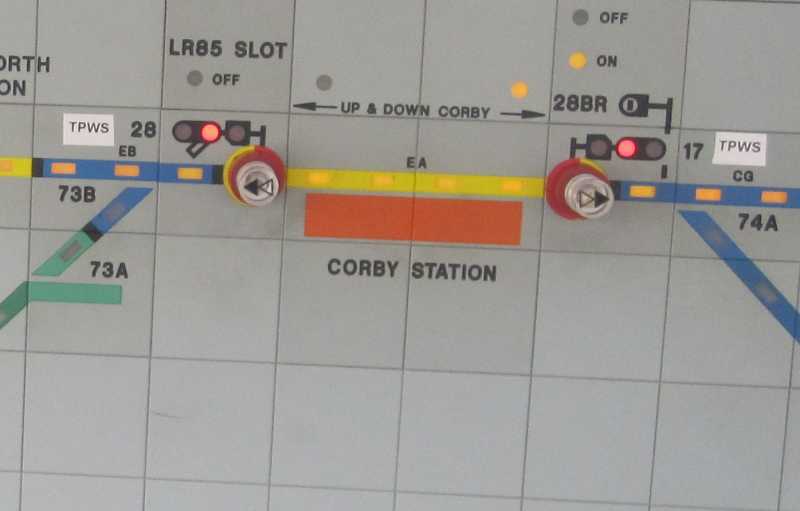

Just to confirm the above, here's one that definitely has an indicator!
Post has attachments. Log in to view them. Last edited: 31/03/2014 at 15:11 by Late Turn Log in to reply |
