Electrification 11/10/2015 at 18:54 #76796
Jan
Avatar
765 posts
I've produced an electrification map intended for the wiki similar to the one I did for Motherwell:


First, one question: Is 136 crossover at Newton Junction actually electrified? From what I've found online it looks like it isn't, but I'm not absolutely sure.

Next, I think I've found a number of discrepancies between reality and the sim:

  • The Goods Line through Ardrossan South Beach is electrified starting from the overlap of GPK482, although to be honest this is somewhat nitpicky as it's very very improbably that an electric train would actually want to use that piece of line.

  • 136 crossover at Newton Junction probably shouldn't be electrified (see above).

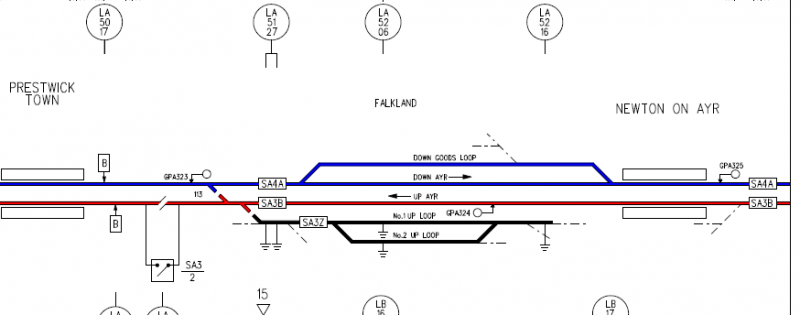

  • At Falkland, reception line #1 is only electrified for the first 100 m as measured from the tip of 124 points and reception line #2 is only electrified over 124 points themselves, but not even behind the shunt signal. This means that electric trains can only get in and out from the Prestwick end.

  • For the route from GPA340 to GPA844, electric trains complain about missing electrification even though there's no reason to.

  • The Up Girvan should be electrified between the platform and 152 crossover, the Down Girvan to approximately 200 m in rear of GPA358. Currently, electric trains complain about missing electrification as soon as they reach GPA855/857, so I didn't manage to reverse one behind GPA859/358.


Post has attachments. Log in to view them.
Two million people attempt to use Birmingham's magnificent rail network every year, with just over a million of them managing to get further than Smethwick.
Log in to reply
Electrification 11/10/2015 at 19:05 #76798
madaboutrains
Avatar
258 posts

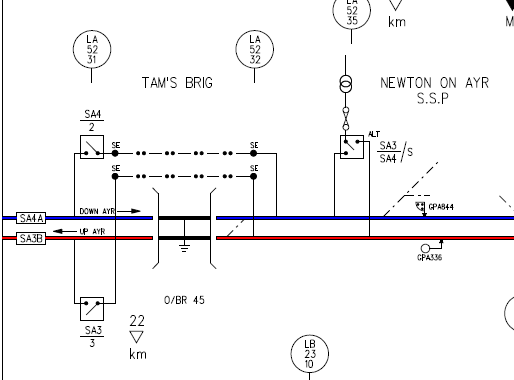

136 crossover?
Log in to reply
Electrification 11/10/2015 at 19:10 #76799
madaboutrains
Avatar
258 posts
No...


Post has attachments. Log in to view them.
Log in to reply
Electrification 11/10/2015 at 19:10 #76800
madaboutrains
Avatar
258 posts

Post has attachments. Log in to view them.
Log in to reply
The following user said thank you: Jan
Electrification 11/10/2015 at 20:30 #76801
Peter Bennet
Avatar
4901 posts
Online
Thanks, couple of errors. Due to Sim limitations trains will refuse routes if not all the TCs in the line of route are electrified which explains some observations so electrification extended.

Peter

I identify as half man half biscuit - crumbs!
Log in to reply
Electrification 11/10/2015 at 21:53 #76804
Jan
Avatar
765 posts
Thanks. I suppose that sim limitation means that you can simply leave the whole #1 reception between GPA838 and GPA327 electrified, so there was no need for me to measure it that exactly :laugh:

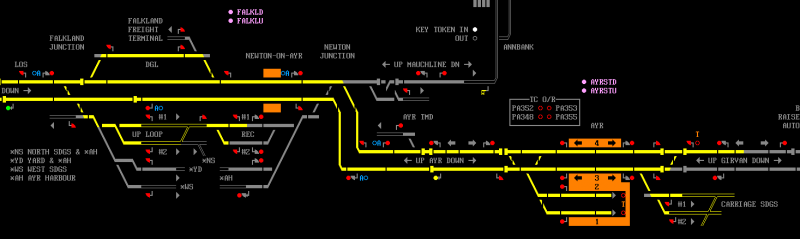

Just noticed that forum attachments get resized to 800 px max, so here's a crop for the Ayr area:

Post has attachments. Log in to view them.
Two million people attempt to use Birmingham's magnificent rail network every year, with just over a million of them managing to get further than Smethwick.
Last edited: 11/10/2015 at 21:58 by Jan
Log in to reply
Electrification 15/10/2015 at 11:30 #76892
NewBuildmini432
Avatar
48 posts
Thats Paisley.
Class 150/2 approaching towards Welshpool. Wrong train you got, only 158's are fitted with ERTMS.
Log in to reply
The following user said thank you: Peter Bennet
Electrification 15/10/2015 at 11:42 #76896
postal
Avatar
4535 posts
Online
" said:
Thats Paisley.
Perhaps that's why it's in the Paisley topic.

“In life, there is always someone out there, who won’t like you, for whatever reason, don’t let the insecurities in their lives affect yours.” – Rashida Rowe
Log in to reply
The following users said thank you: flabberdacks, BarryM, northroad, JamesN, 320322
Electrification 03/11/2015 at 17:44 #77432
Jan
Avatar
765 posts
Just spotted it, Falkland DGL is missing its electrification within the sim as well.
Two million people attempt to use Birmingham's magnificent rail network every year, with just over a million of them managing to get further than Smethwick.
Log in to reply
