A little Mock-SimSig Fun!

You are here: Home > Forum > Wishlist > Simulation wish list > A little Mock-SimSig Fun!

Page 2 of 14

A little Mock-SimSig Fun! 13/03/2021 at 08:58 #137774
DonRiver
Avatar
116 posts
What did the "lost" editor let you do that's superior to a word processor?

I can imagine an editor which already contains a grid of blank characters you can move around with the cursor, which has some kind of block-select cut-and-paste support for easier repositioning...

Log in to reply
A little Mock-SimSig Fun! 13/03/2021 at 15:09 #137779
DaveHarries
Avatar
1120 posts

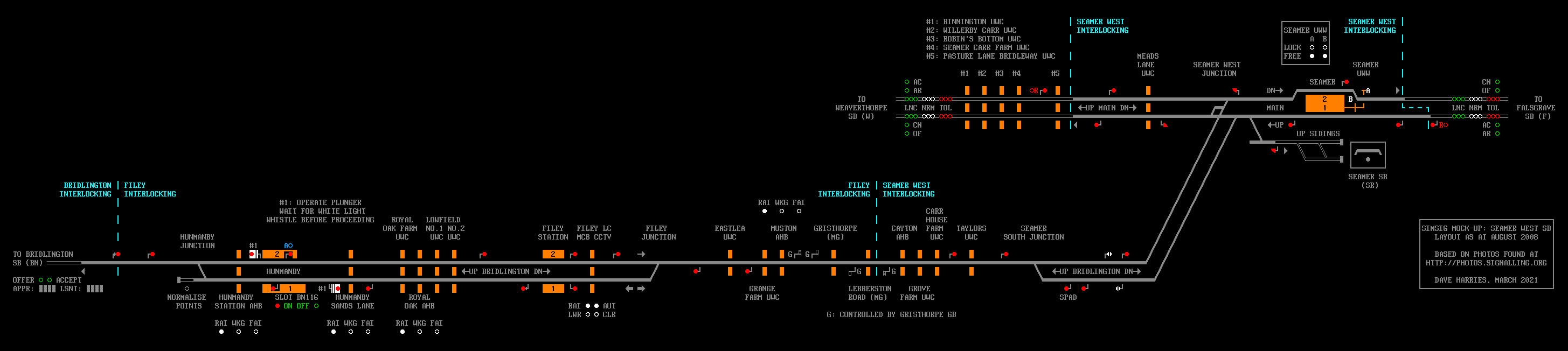

It is good to see that there are fellow SimSig-ers with creative minds during these times. Here is an effort on my part in the guise of a mock-up of Seamer. I think I have it right although I have done the Bridlington fringe as shown here as I am not sure as to the method of working. This isn't the only mock-up I have done and I may post one or two of the others.

The layout shown here is done to be as close a replica as possible of the panel as shown at https://photos.signalling.org/index?/category/2440-2008_august and thoughts are welcome.

Dave


Post has attachments. Log in to view them.
Log in to reply
A little Mock-SimSig Fun! 13/03/2021 at 15:52 #137787
jc92
Avatar
3396 posts
elltrain3 in post 137770 said:
And here is the S&C with all crossings, tunnels, and TC's as per Real Life.

The IBS's seem very lopsided and awkward but think I've made it work, I was debating adding in Horrocksford junction & Daisyfield?

Arcow quarry sidings appear to be missing (GF on the down between settle and ribblehead.)

"We don't stop camborne wednesdays"
Log in to reply
A little Mock-SimSig Fun! 13/03/2021 at 15:53 #137788
elltrain3
Avatar
276 posts
I think the fringe is right, it worked under slots IIRC, looks like a very good mockup! I can imagine the entire york - Scarborough would be 1 sim, though I'd wish anyone luck as to making the gantry at Falsgrave in simsig xD
"The Out-of-control Host"
Log in to reply
A little Mock-SimSig Fun! 13/03/2021 at 15:54 #137789
elltrain3
Avatar
276 posts
AH Yes, spotted it in the Sectional Appendix
"The Out-of-control Host"
Log in to reply
A little Mock-SimSig Fun! 13/03/2021 at 17:34 #137791
elltrain3
Avatar
276 posts

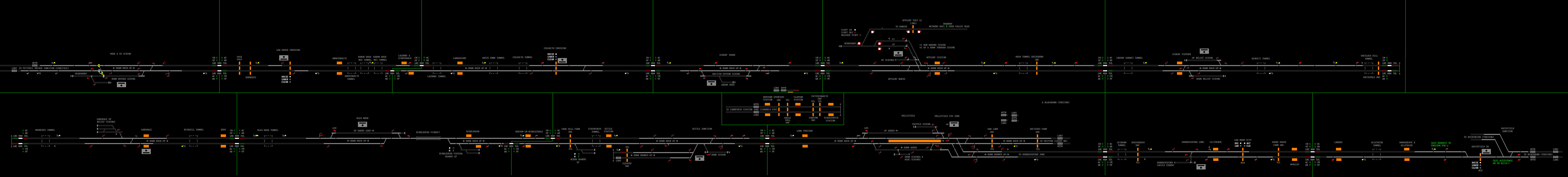

A revised S&C With the section all the way to Preston PSB! Simulated


Post has attachments. Log in to view them.
"The Out-of-control Host"
Log in to reply
A little Mock-SimSig Fun! 13/03/2021 at 20:36 #137799
Steamer
Avatar
3652 posts
Online
Very nice! You're quite a bit faster than me- I've only got to Settle Junction, having started at Daisyfield...
"Don't stress/ relax/ let life roll off your backs./ Except for death and paying taxes/ everything in life.../ is only for now." (Avenue Q)
Log in to reply
A little Mock-SimSig Fun! 14/03/2021 at 01:45 #137806
elltrain3
Avatar
276 posts
Thanks! haha, obtaining certain diagrams in a decent quality proved tricky but worked out alright, its a good challenge trying to make these mocks, debating what to make next, Either the Cumbrian Coast, Carlisle - Newcastle, Or East Yorkshire
"The Out-of-control Host"
Log in to reply
A little Mock-SimSig Fun! 14/03/2021 at 20:19 #137836
elltrain3
Avatar
276 posts
Decided none of them, and done a mock of Inverness SC, now to add the Far North Lines :/


Post has attachments. Log in to view them.
"The Out-of-control Host"
Log in to reply
The following user said thank you: Dionysusnu
A little Mock-SimSig Fun! 15/03/2021 at 12:57 #137845
jrr
Avatar
95 posts
Interesting - I had no idea Inverness controls Llandovery!!!
Log in to reply
The following user said thank you: Dionysusnu
A little Mock-SimSig Fun! 15/03/2021 at 13:18 #137846
jc92
Avatar
3396 posts
jrr in post 137845 said:
Interesting - I had no idea Inverness controls Llandovery!!!
This is what happens when you start opening ROCs controlling large areas.

"We don't stop camborne wednesdays"
Log in to reply
A little Mock-SimSig Fun! 15/03/2021 at 15:20 #137850
danners430
Avatar
133 posts

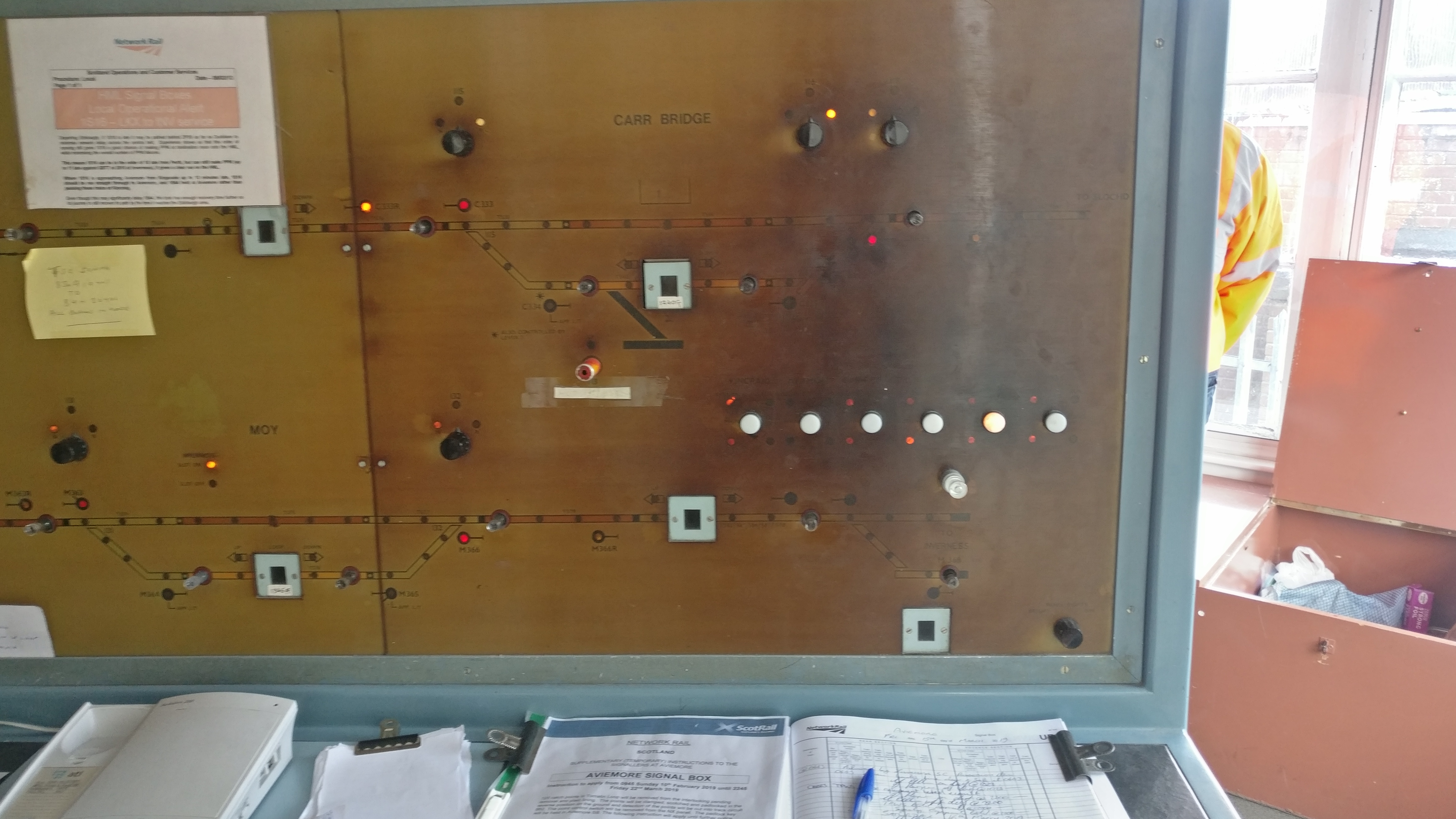

Just a heads up, the points in platform 5 are actually worked by a ground frame released from the SC - you can even see the GF from the station. I do however like the slots both to and from Aviemore (although bear in mind it would read "Moy (Aviemore)", as Moy is the first loop which is (was) controlled by Aviemore SB, now Inverness SC) - this is how the single line was worked in real life. Photo of Aviemore panel attached for reference, although please excuse the scorch marks... it was taken a few weeks before decommissioning, and the old neon lamps had taken their toll


Post has attachments. Log in to view them.
Log in to reply
A little Mock-SimSig Fun! 15/03/2021 at 15:26 #137851
danners430
Avatar
133 posts
Also, plenty of reference photos of Inverness panel in this Flickr album by Llangollen Signalman (who I believe is also a member of the forum) - https://flickr.com/photos/llangollen_signalman/albums/72157626592432648
Log in to reply
A little Mock-SimSig Fun! 15/03/2021 at 16:05 #137853
elltrain3
Avatar
276 posts
Yeah Llandovery & the HOW line is the closest current thing to a token worked line so been using it as a base xD

And yeah I did wonder about Platform 5 as there was no signalled move to head southwards, so useful to know, I'll go get that added!

and ah yeah, I'll add the "moy" bit, and I've done this pre- the Elgin/Forres/Nairn & Aviemore resignalling
and yeah the Llangollen signalmans page really quite useful! I've been using the sectional appendix for north of Inverness as there are No TCs
The arrangement at Dingwall is one, I've had to keep playing around with, as IRL the driver plunges for the route set and its agreed with Inverness West RETB SCC but not sure how you would replicate that in simsig,

"The Out-of-control Host"
Log in to reply
A little Mock-SimSig Fun! 15/03/2021 at 16:28 #137854
danners430
Avatar
133 posts
Realistically, RETB would probably be replicated in SimSig by a whole bunch of stop boards (as in real life), with no track circuits. Drivers would phone the Signaller for permission to pass the stop boards at each station, with the Signaller manually interposing train descriptions.

The junction logic I suppose could be the same as is used in off-sim junctions, such as Baguely Fold Jn on Manchester North (when not chained). In real life, RETB signallers have no remote control over points at all - all pointwork is either automatic (such as at loops), controlled by traincrew (such as at Dingwall and Crianlarich) or manually worked using ground frames.

Also, don't forget about the swing bridge at Clachnaharry!

Log in to reply
A little Mock-SimSig Fun! 15/03/2021 at 16:55 #137855
bill_gensheet
Avatar
818 posts
danners430 in post 137854 said:
Realistically, RETB would probably be replicated in SimSig by a whole bunch of stop boards (as in real life), with no track circuits. Drivers would phone the Signaller for permission to pass the stop boards at each station, with the Signaller manually interposing train descriptions.

The junction logic I suppose could be the same as is used in off-sim junctions, such as Baguely Fold Jn on Manchester North (when not chained). In real life, RETB signallers have no remote control over points at all - all pointwork is either automatic (such as at loops), controlled by traincrew (such as at Dingwall and Crianlarich) or manually worked using ground frames.

Also, don't forget about the swing bridge at Clachnaharry!
IIRC there are some local TC and interlocks for these junctions, albeit invisible to Inverness. I think it is to prevent either route from Dingwall being set if a train is between Dingwall and Fodderty / Evanton 'IB', and to be sure there is a train at Dingwall. I have the details somewhere.

As for 'train crew operated' ....that is unless there is someone on the platform in which case they get asked to push the button instead !

Bill

Log in to reply
A little Mock-SimSig Fun! 15/03/2021 at 17:02 #137856
elltrain3
Avatar
276 posts
Yeah, i found the swing bridge early on, with it's up & down slots plus the crossing it monitors! -

https://www.flickr.com/photos/16506140@N05/29821546672/in/photolist-DJudvA-UzZA6P-2kzKSRT-WxKpC3-r77RJm-MredRN-XYkpT1-M9auZ-M9auK-29uVbfx-2exwDo4-WpKDVp-bAGAtt-23kRARM-GCoyhV-9Q3yVo-2esWehG-dfwYt7-xeHC7F-9ECNep-dfwXHk-dfx1R7-bXjYRH-dfwZnW-dfwZL1-9FbHis-2kwbVWs-dfx1w9-dfwWk6-9HpiEn-2k14L2d-2k19dhA-WbWF94-KhwLU7-2k19dXJ-ekdsAk-dRJVv-djZTe9-a1UKoz-2iYMwsP-b7TJP2-sc5kT6-9E2mkv-9E5fqw-MuRKSa/

and so in terms of how it looks, not much visual is needed, its all "automatic" so to speak the head code will just move with the way the train is booked.

(I've attached my progress so far on the North lines for a visual aid)

Aaand got the Kyle - Of - Lochalsh line done

Post has attachments. Log in to view them.
"The Out-of-control Host"
Last edited: 15/03/2021 at 17:59 by elltrain3
Reason: None given

Log in to reply
A little Mock-SimSig Fun! 15/03/2021 at 18:25 #137861
jc92
Avatar
3396 posts
danners430 in post 137854 said:
Realistically, RETB would probably be replicated in SimSig by a whole bunch of stop boards (as in real life), with no track circuits. Drivers would phone the Signaller for permission to pass the stop boards at each station, with the Signaller manually interposing train descriptions.

The junction logic I suppose could be the same as is used in off-sim junctions, such as Baguely Fold Jn on Manchester North (when not chained). In real life, RETB signallers have no remote control over points at all - all pointwork is either automatic (such as at loops), controlled by traincrew (such as at Dingwall and Crianlarich) or manually worked using ground frames.

Also, don't forget about the swing bridge at Clachnaharry!
Pretty much how the token sections have been implemented on hereford and Cardiff valleys would be a good copy and paste representation of RETB, although I'm not sure how it would cope with issuing long section tokens.

"We don't stop camborne wednesdays"
Log in to reply
A little Mock-SimSig Fun! 15/03/2021 at 20:16 #137866
elltrain3
Avatar
276 posts
Yeah Long Section/Short Section tokens & Intermediate Block Stop Boards are a new thing for me. Never seen them before!

I assume it'd all be done through a call, and one of the responses is to issue a "long" token and another for a "short" one

"The Out-of-control Host"
Log in to reply
A little Mock-SimSig Fun! 15/03/2021 at 20:41 #137867
Peter Bennet
Avatar
5076 posts
I note it says RETB West and North, does that mean there are at least 2 workstations? Seems a bit excessive for the number of trains at any given time.

Peter

I identify as half man half biscuit - crumbs!
Log in to reply
A little Mock-SimSig Fun! 15/03/2021 at 20:46 #137868
Steamer
Avatar
3652 posts
Online

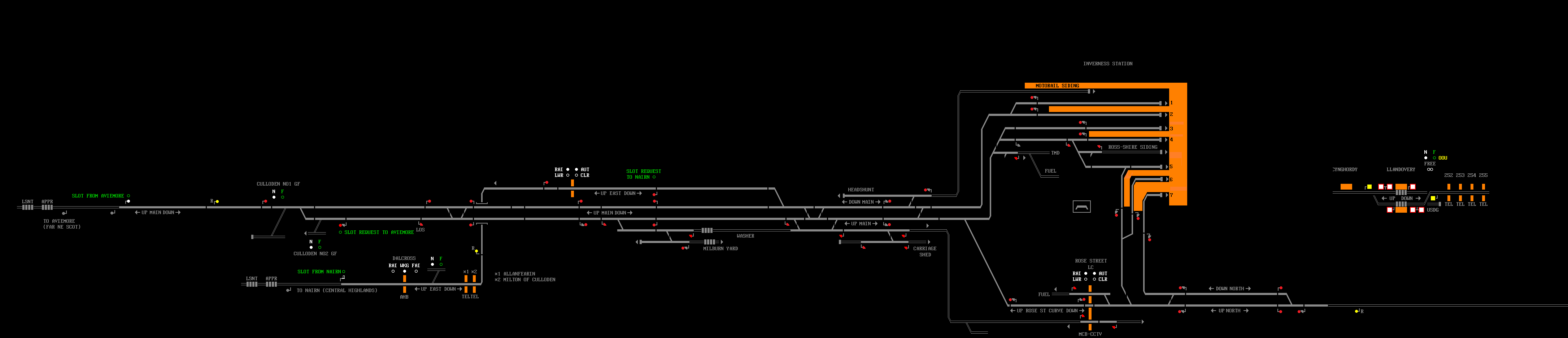

My take on the S&C:


Post has attachments. Log in to view them.
"Don't stress/ relax/ let life roll off your backs./ Except for death and paying taxes/ everything in life.../ is only for now." (Avenue Q)
Log in to reply
The following user said thank you: peterb
A little Mock-SimSig Fun! 15/03/2021 at 21:00 #137873
elltrain3
Avatar
276 posts
Peter Bennet in post 137867 said:
I note it says RETB West and North, does that mean there are at least 2 workstations? Seems a bit excessive for the number of trains at any given time.

Peter
Yeah I found this, from research it has
"West" - that deals with Inverness To Dingwall & Kyle Of Lochalsh
"North" - From Dingwall - Wick & Thurso
Plus a manned crossings work station for the hundreds of them en-route

and that S&C looks incredible, opposite way around to mine but yeah looks ace, a small but I can guess busy little sim it'll be

"The Out-of-control Host"
Last edited: 15/03/2021 at 21:01 by elltrain3
Reason: None given

Log in to reply
A little Mock-SimSig Fun! 15/03/2021 at 21:32 #137874
Ron_J
Avatar
305 posts
Peter Bennet in post 137867 said:
I note it says RETB West and North, does that mean there are at least 2 workstations? Seems a bit excessive for the number of trains at any given time.

Peter
They split the interlockings because you can only issue 5 Engineer’s tokens per interlocking at any one time. Before the split the place went like a fair on weekday mornings between the trains and maintenance work. It was difficult for anyone to get a word in edgeways at times.

Log in to reply
A little Mock-SimSig Fun! 16/03/2021 at 02:06 #137879
elltrain3
Avatar
276 posts
and a very long Inverness sim complete! the amount of crossings is just mad! you'd be on the phone all the time! haha


Post has attachments. Log in to view them.
"The Out-of-control Host"
Log in to reply
The following users said thank you: ajax103, JWNoctis, Class 86
A little Mock-SimSig Fun! 16/03/2021 at 08:43 #137880
peterb
Avatar
437 posts
Steamer in post 137868 said:
My take on the S&C:

Blea Moor's UGL starter is BM19.

Log in to reply
The following user said thank you: Steamer
