Track circuits St Margarets. 28/08/2023 at 17:46 #153045
i26
Avatar
306 posts 		In the update all platforms were to accommodate 10 coach trains. At St Margarets after leaving Twickenham P4 8 Coach trains are overhanging F14 including when the train has passed F10.

EDIT: St Margarets could accommodate 10 coach trains at the time without any overhang on the TC I'm pretty sure.
Last edited: 28/08/2023 at 17:49 by i26
Reason: None given
Log in to reply
Track circuits St Margarets. 28/08/2023 at 18:29 #153052
GeoffM
Avatar
6287 posts 		Scheme plans and this video show the "block joint" part way down the platform, and track ~160m long, so in real life a 160m train would briefly occupy the track sections either side. Nevertheless, the track sections in the sim are a little under so I've put that under Mantis 39234.
SimSig Boss
Log in to reply
The following user said thank you: i26
Track circuits St Margarets. 29/08/2023 at 21:19 #153069
madaboutrains
Avatar

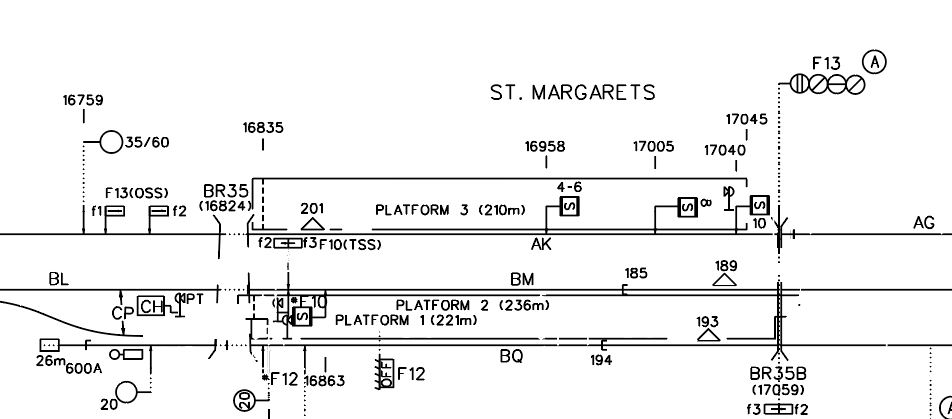

308 posts 		Can cofirm the overlaps are within the platform.
Post has attachments. Log in to view them.
RIP Feltham Panel 1
Log in to reply
Track circuits St Margarets. 30/08/2023 at 10:27 #153075
i26
Avatar
306 posts 		madaboutrains in post 153069 said:
Can cofirm the overlaps are within the platform.

Was this prior or after the platform lengthening?
Log in to reply
Track circuits St Margarets. 30/08/2023 at 12:09 #153080
Hap
Avatar
986 posts 		Going by the SA, that plan has the current platform lengths for St Margarets.

You'd also have to remember that even though it may seem like a train is overhanging a signal on the panel, the signal position irl may not be exactly where it is illustrated on the panel/sim itself

Given the close proximity of F14 and the TC splits down the platform, that having TBL; TBM and TBN all occupied at the same time is pretty accurate.
How to report an issue: www.SimSig.co.uk/Wiki/Show?page=usertrack:reportanissue
Last edited: 30/08/2023 at 12:09 by Hap
Reason: None given
Log in to reply
The following user said thank you: i26
Track circuits St Margarets. 30/08/2023 at 15:56 #153084
GeoffM
Avatar
6287 posts 		i26 in post 153075 said:
madaboutrains in post 153069 said:
Can cofirm the overlaps are within the platform.

Was this prior or after the platform lengthening?
Yes, the signalling didn't change. The platforms were extended from somewhere near the 17005 mark to 17059. The car stop markers wouldn't have changed either.
SimSig Boss
Log in to reply
The following user said thank you: i26
